| Model | ASK-ASM101 |
| Machine Head | SiRUBA 747KST-514M-3-24 |
| Sewing Speed | 5500 SPM ( Max ) |
| Needle Type | DC×27 #11 |
| Presserfoot Height | 8.5 mm ( Max ) |
| Overedge Width | 4 mm |
| Needle Distance | 2 mm |
| Rib Size (mm) |  |
| Fabric Thickness | 7 mm |
| Air Consumption | 180 L/min |
| Air Pressure | 0.5 Mpa |
| Power Supply | Single Phase 1Φ AC200~240V 50/60Hz |
| Power Consumption | 500 W ( Max ) |
| Machine Dimensions | (W)825×(D)640×(H)1622mm ( With table and thread stand ) |

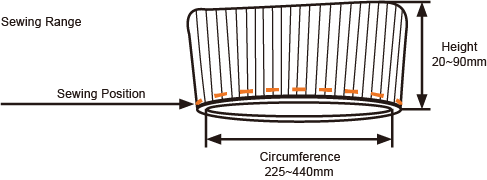

| Production Capacity | 200~240 PCS/Hour (Sewing Speed: 3000 spm, Rib Size: Circumference: 270mm, Height: 60mm) |
Features

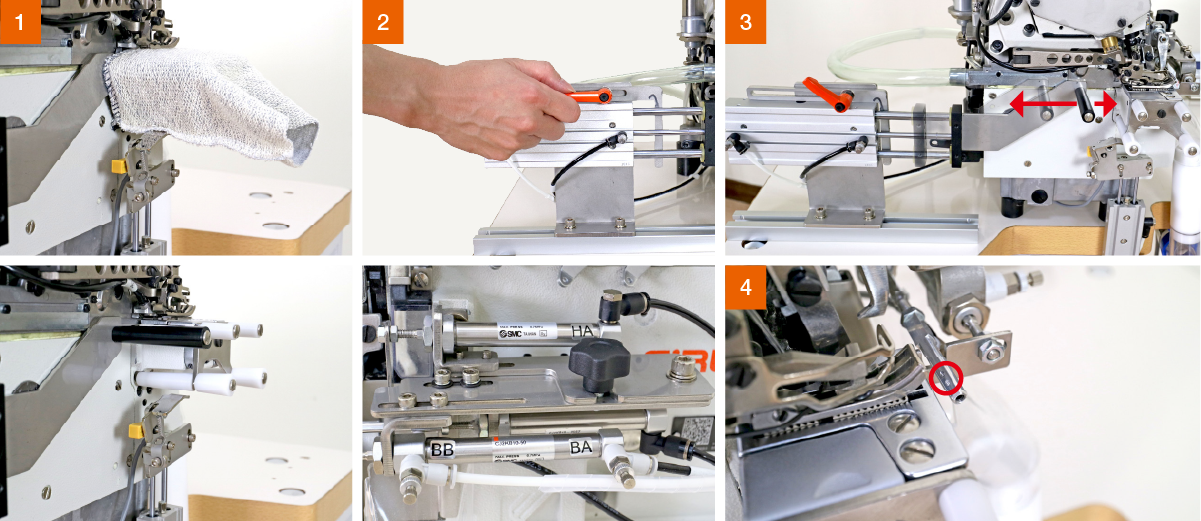

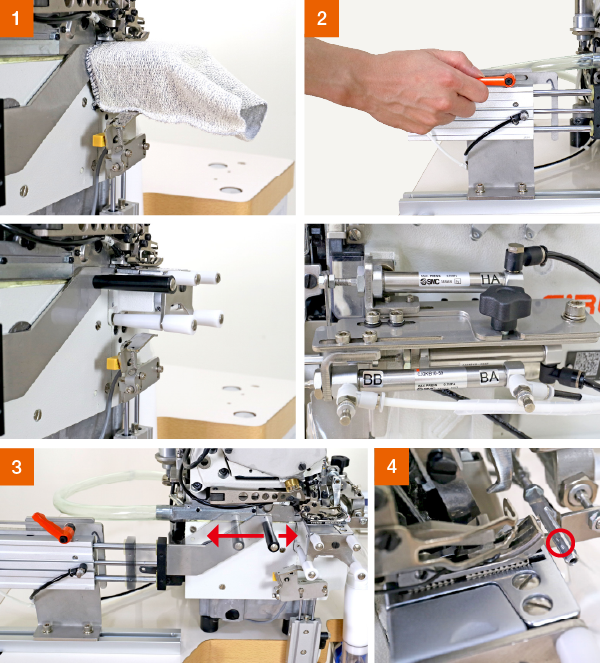

1.Auto seam detector, easy to set up the stitches after seam.
2.Quick adjustment mechanism, easy for setting and maintenance.
3.Tension controller for smooth feeding and puckering free.
4.Anti-curly edge device reduce sewing defects.
2.Quick adjustment mechanism, easy for setting and maintenance.
3.Tension controller for smooth feeding and puckering free.
4.Anti-curly edge device reduce sewing defects.
